Refrigeration Unit with Inner Grooved Copper Tube and Parallel Flow Condenser for R404A Cool Transportation Box

  • 1
  • 2

Box Volume : ≤18m³

Delivery Time : 20

Evaporator Dimensions : 1010×640×250 mm

Model Number : HT-480

Brand Name : YINHUASHENG

MOQ : 1PCS

Packaging Details : WOODEN CASE/CARTOON

Refrigerant Charge : 1.4KG

Supply Ability : 1000

Certification : CE/ISO

Place of Origin : CHINA

Payment Terms : L/C,T/T

Compressor CC : 135 CC

Price : negotiation

Cooling Capacity : 4750 W at 0℃, 2130 W at -18℃

Applicable Temperature : -25℃ ~ +25℃

Contact Now

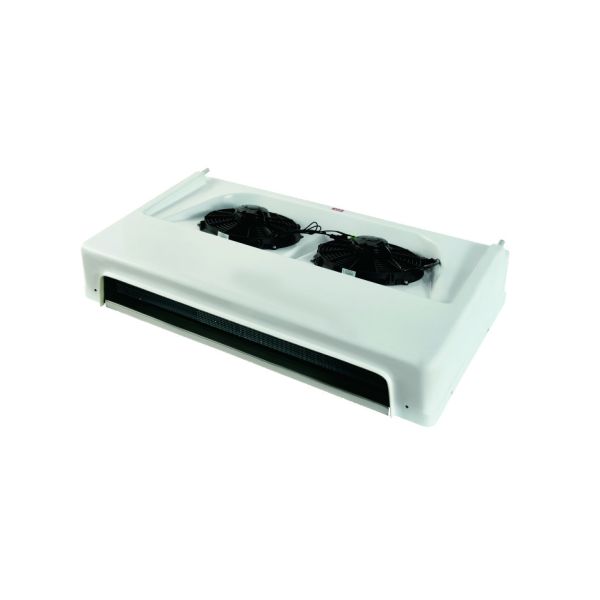

HT-480 Refrigeration Unit with Inner Grooved Copper Tube and Parallel Flow Condenser for R404A Cool Transportation Box

HT-480 Refrigeration Units designed for cool transportation boxes with volume up to 18m³, featuring advanced cooling technology and robust construction for reliable performance.

Key Features
  • Eco-friendly refrigerant R404A (R134a system also available)
  • Corrosion resistant and high strength FRP canning material
  • Aluminium fin parallel flow condenser, lightweight and compact with excellent heat exchange
  • Inner grooved copper tube evaporator with large airflow and enhanced coil protection
  • Strong, reliable compressor specifically designed for R404a systems
  • Digital display control panel for minimal operation
  • HP and LP switch safety protection
  • Large cooling capacity with reliable performance
Product Images
Refrigeration Unit with Inner Grooved Copper Tube and Parallel Flow Condenser for R404A Cool Transportation Box
Refrigeration Unit with Inner Grooved Copper Tube and Parallel Flow Condenser for R404A Cool Transportation Box
Technical Specifications
Specification Details
Unit Model HT-480
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤18m³
Cooling Capacity at 0℃ 4750 W
Cooling Capacity at -18℃ 2130 W
Compressor Model 5H14
Compressor CC 135 CC
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Evaporator Fans 2 PCS
Condenser Material Parallel flow condenser
Condenser Fans 2 PCS
Refrigerant R404a
Refrigerant Charge 1.4KG
Temperature Control Electronic digital display
Safety Protection High and low pressure switch
Defrosting System Hot gas defrost automatically
Evaporator Weight 26 KG
Condenser Weight 35 KG
Evaporator Dimensions 1010*640*250 mm
Condenser Dimensions 1170*520*415 mm
Drive Model Non-independent engine driven
Important Notes
  1. The applicable compartment volume is for reference only, and in actual application, it is related to the compartment volume, insulation performance, environmental temperature, and transported goods.
  2. The compressor speed is 2000 rpm, and 12V/24V voltage can be selected according to requirements.
Why Choose Our Refrigeration Units
Technological Leadership
Advanced technology and skilled team enabling design, manufacturing, and innovation to the highest standards.
Customization Capabilities
Tailored solutions for specific requirements including size, capacity, temperature range, and special needs.
Quality Assurance
Strict quality control using premium materials and advanced manufacturing processes for reliability and durability.
Customer Service
Priority on customer needs with excellent support, technical assistance, and timely delivery.
Energy Efficiency
Advanced energy-saving technologies minimizing consumption while maximizing efficiency and supporting environmental sustainability.
